HyDrone RCV

HyDrone RCV - Remote Control Vessel

specifications

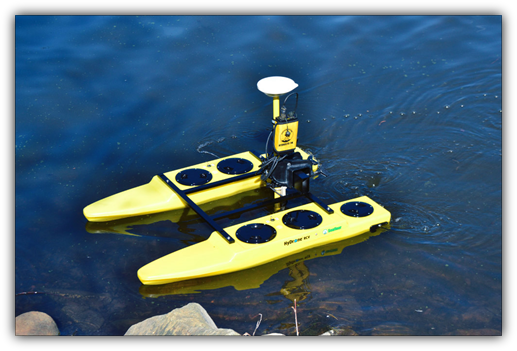

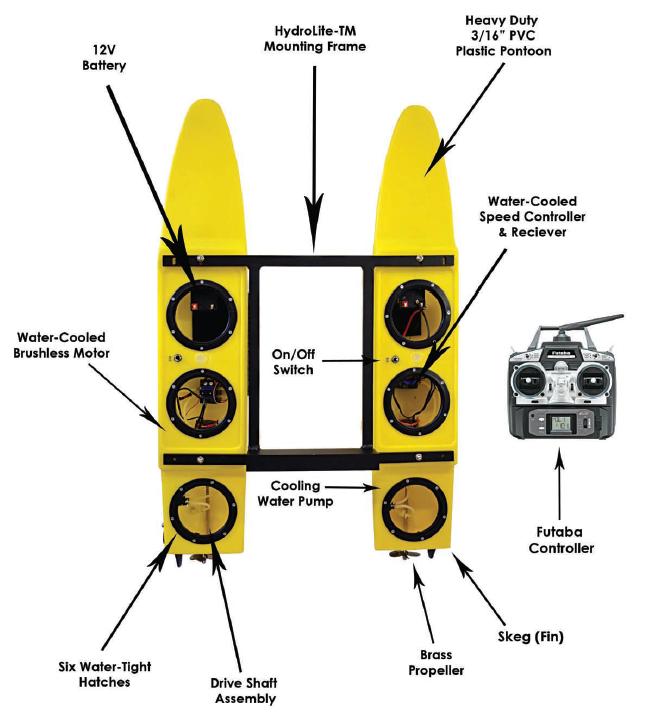

The HyDrone™ RCV is a portable, remote control survey boat platform, packed in its own rugged case. Working in conjunction with the HydroLite-TM portable echosounder kit to conduct bathymetric surveys in ponds, lakes, rivers, and streams, the HyDrone RCV accomplishes the same results as much more expensive RC survey systems, has a wide profile to avoid tipping, and watertight construction.

HyDrone is rugged, lightweight, and manufactured from high quality marine components. The system is easily disassembled for transport and shipping. Work environments include mines, sewage treatment plants, contaminated lakes, harbors, and rivers.

Top Speed                        20 kts
Hull Length                      1168mm / 48.0 in
Hull Width                         736mm / 29 in
Power                                2x 12v 10ah batteries
Battery Endurance         5-8 hours
Payload                             11.3kg / 23 lbs
ECU                                    2x 180 amp water-cooled
Motor                                  2x brushless water-cooled
Hull Material                      UV resistant HDPE
Frame                                 aluminum powder coat
Steering                             alternating prop power
Weight                               14.9kg / 30 lbs
Hardware                          stainless steel
Remote Control               Futaba 2.4Ghz long range
Remote Range                 2 km
Propeller                            brass 3'' dia / 4 blade
Hatches                             6x water-tight abs
Echosounder                   HydroLite
