SonarMite MILspec

SonarMite MILspec

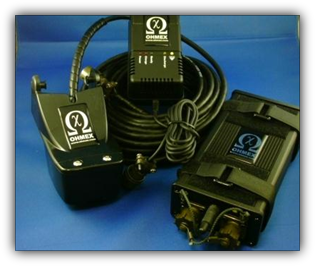

The SonarMite MILspec system represents the ultimate in portable ruggedised hydrographic surveying equipment, based around the integration of sub-meter handheld GPS with the Ohmex ‘SonarMite’ portable DSP echo sounder. The system, manufactured in the USA, further extends the boundaries of shallow water hydrographic surveying equipment.The release of the MILspec echo sounder marks a further milestone in the introduction of equipment designed around the WinSTRUMENT concept using the latest portable computers integrated with new measurement technologies.

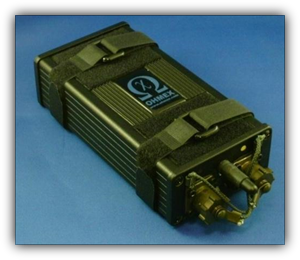

The MILspec SonarMite makes use of a metal case with MIL spec connectors to provide a ruggedised enclosure.

The use of Bluetooth wireless technology enables the SonarMite instrument to be waterproof and used in a hostile environment while the more sensitive computer features can be located in a more user friendly environment up to 50m away from the instrument. The SonarMite instrument uses 'Smart' integrated echo sounder transducer technology, in addition to highly reliable bottom tracking algorithms using DSP techniques the system also outputs a quality value associated with every depth measurement made.

HydroLite Frame specification

Extruded Aluminium case

MILspec C26482 connectors

MILspec C26482 dustcaps

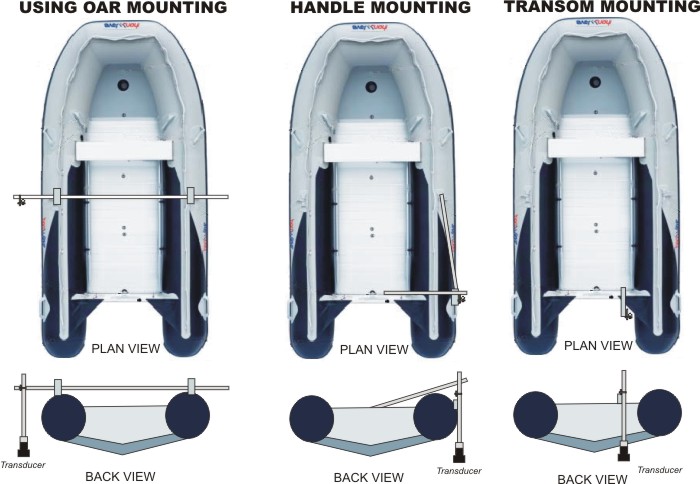

Velcro Wrapped for easy installation
